| Brand Name: | Wellgain |
| Model Number: | WG-MSH-4000H |
| MOQ: | 1 Set |
| Price: | USD 8-18 / Square Meter |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 50,000 SQM per Month |

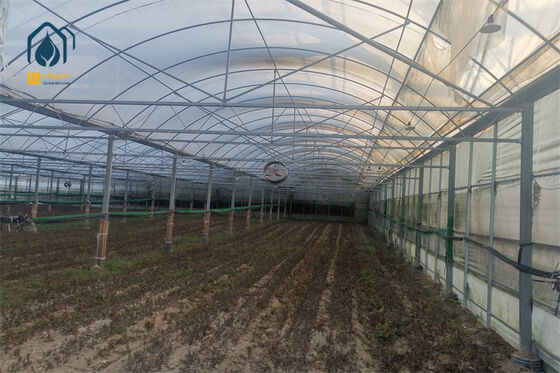

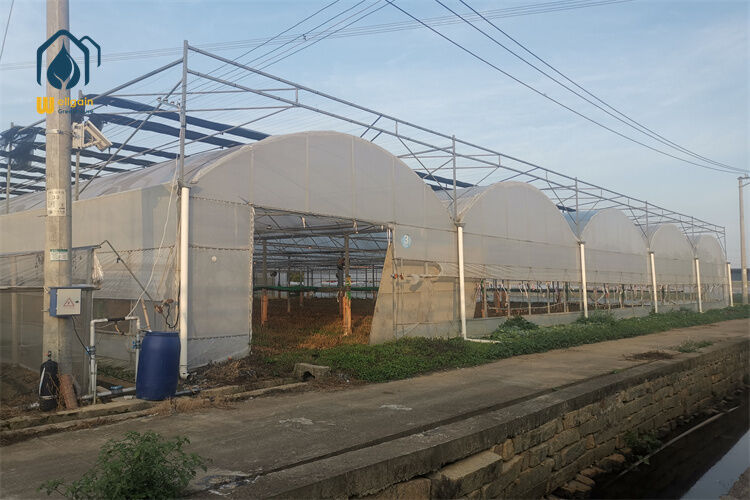

The Wellgain WG-MSH-4000H is engineered specifically for greenhouse operators in cold and temperate climate zones who require dependable year-round production capability. This advanced multi span greenhouse integrates a hot water boiler heating system with double-layer inflatable film covering and an aluminum foil energy-saving curtain to create a highly efficient thermal envelope.
The hot water heating system circulates heated water through strategically positioned steel pipe radiators along the perimeter and under growing benches, delivering uniform heat distribution throughout the structure. Combined with the insulating air gap created by the double-layer film and the reflective thermal screen, the system maintains optimal growing temperatures even when outside temperatures drop well below freezing.
This greenhouse is ideal for winter vegetable production, ornamental plant nurseries, and any crop requiring stable temperature conditions regardless of external weather. The modular design allows easy expansion as your operation grows.
| Parameter | Specification |
|---|---|
| Structure Type | Multi Span Arch Roof with Heating System |
| Frame Material | Hot-dip Galvanized Steel Q235 |
| Covering | Double-layer Inflatable PE Film 150-200 micron |
| Heating System | Hot Water Boiler (Coal/Gas/Biomass) + Steel Pipe Radiators |
| Energy Curtain | Aluminum Foil + Polyester Thermal Screen |
| Span Width | 8.0m / 9.6m |
| Gutter Height | 3.5m - 5.0m |
| Bay Distance | 4.0m |
| Wind Load | 0.50 KN/m² |
| Snow Load | 0.40 KN/m² (enhanced) |
| Temperature Maintenance | 15-25°C internal at -20°C external |
