| Brand Name: | Wellgain |
| Model Number: | WG-MSP-2000 |
| MOQ: | 1 Set |
| Price: | USD 8-16 / Square Meter |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 50,000 SQM per Month |

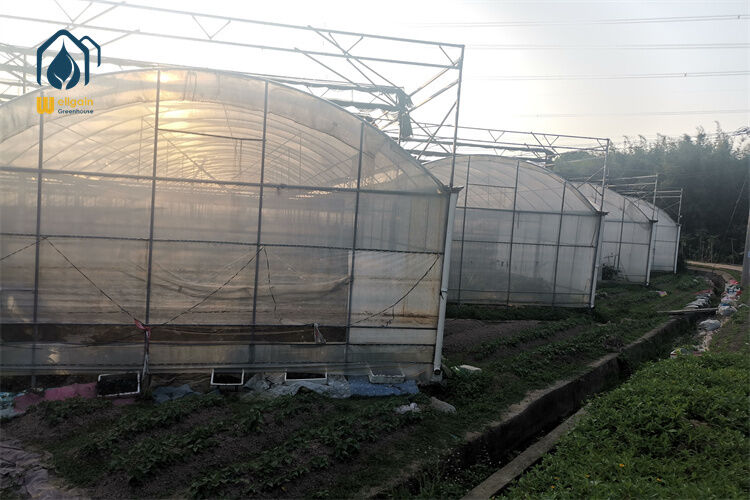

The Wellgain WG-MSP-2000 Multi Span PE Film Greenhouse is purpose-built for commercial vegetable growers who demand reliable, cost-effective protected cultivation solutions. This greenhouse features a robust multi-span arch structure that creates expansive, column-free growing spaces, allowing efficient machinery operation and optimal crop layout.
Covered with high-clarity polyethylene film offering up to 90% light transmission, the WG-MSP-2000 creates the ideal photosynthesis environment for vegetables including tomatoes, cucumbers, peppers, eggplants, and leafy greens. The natural ridge ventilation design promotes passive airflow, maintaining optimal temperature and humidity levels without excessive energy consumption.
The modular design allows growers to expand the greenhouse in both length and width as their operations grow, making it a future-proof investment for agricultural enterprises. Compatible with drip irrigation, misting, heating, and CO2 enrichment systems for precision farming applications.
| Parameter | Specification |
|---|---|
| Structure Type | Multi Span Arch Roof |
| Frame Material | Hot-dip Galvanized Steel (Q235, 275g/m² zinc coating) |
| Covering Film | Anti-drip PE Film, 150-200 micron |
| Light Transmission | 85% - 90% |
| Span Width | 8.0m / 9.6m |
| Bay Distance | 4.0m |
| Gutter Height | 3.0m - 4.5m |
| Ridge Height | 5.0m - 6.8m |
| Wind Load | 0.45 KN/m² |
| Snow Load | 0.25 KN/m² |
| Ventilation | Continuous Roof Vent & Manual Side Roll-up |
| Door Type | Sliding or Hinged (customizable) |
Our Xiamen factory operates under ISO 9001:2015 quality management standards with fully documented production processes from raw material inspection to final assembly testing.
Equipped with CNC tube bending centers, automated cut-to-length lines, and robotic welding stations ensuring consistent precision across all structural components.
Successfully exported to 30+ countries across Asia, Africa, Middle East, South America, and Oceania. Experienced in container loading optimization and international logistics.
Every steel component undergoes zinc coating thickness testing, dimensional inspection, and load-bearing verification before packaging and shipment.
30,000 sqm multi span installation with evaporative cooling pads for arid climate tomato production. Enabled year-round harvesting with 60 tons annual yield per hectare.
12,000 sqm greenhouse for off-season cucumber cultivation. Anti-insect netting on side vents reduced pesticide usage by 70% and improved fruit quality.
25,000 sqm climate-controlled greenhouse with internal shade screens. Produces 5 crop cycles annually of lettuce and herbs for premium hotel and restaurant supply chains.
A: The WG-MSP-2000 is ideal for tomatoes, cucumbers, peppers, eggplants, melons, strawberries, leafy greens, herbs, and most common vegetables. The high light transmission and controlled environment support diverse crop types.
A: Our standard PE film has a 3-5 year service life depending on UV exposure intensity. We offer premium multi-layer films with up to 7-year longevity for regions with intense sunlight.
A: Yes, we provide comprehensive installation manuals, CAD assembly drawings, and assembly videos. Most customers complete installation with local labor. We also offer supervisor dispatch service if needed.
A: Absolutely. We offer 12-month warranty on structural components, lifetime technical consultation, and readily available spare parts for all greenhouse models.
