Tunnel Greenhouse Agricultural Greenhouses Industrial Hydroponic For Tomato And Cucumber

Tunnel Greenhouse Agricultural Greenhouses Industrial Hydroponic For Tomato And Cucumber

Brand Name:	Wellgain
MOQ:	500m2
Payment Terms:	T/T
Supply Ability:	100000m2 per month

Detail Information

Product Description

Detail Information

Features:

Stable Structure Easily Assembled

Size:

Customized

Material:

Steel Frame Construction And Film

Side Hight:

1-2.5m

Top Height:

2.5-4.5m

Frame Material:

Hot Dip Galvanized Steel Tube

Application:

Vegetable Fruits Flowers

Highlight:

Industrial Hydroponic Tunnel Greenhouse

Tomato Cucumber Tunnel Greenhouse

Agricultural Tunnel Greenhouse

Product Description

Tunnel Greenhouse Agricultural Greenhouses Industrial Hydroponic For Tomato And Cucumber

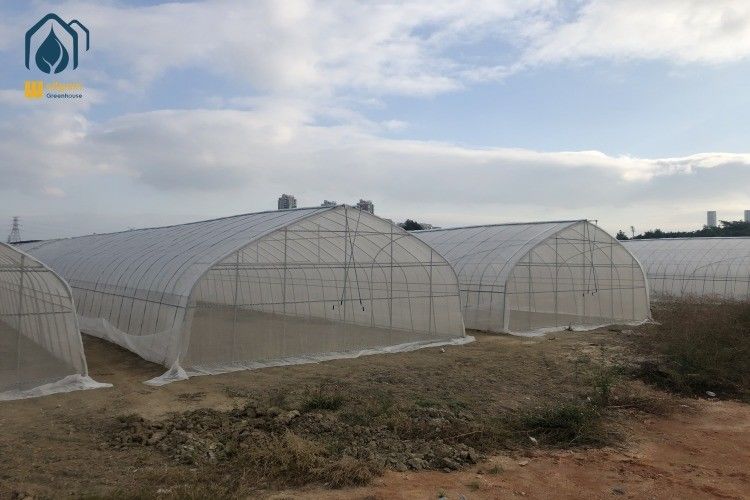

The single span/hoop film greenhosue is a small type greenhouse, widely used in many countries.

The greenhouse span width usually 6m/8m/10m; the bay width usually 4m; gutter height usually from 1m-3m. total height from 2.5m-5m.

The steel structure of the single span greenhouse is all assembled and welded by hot-dip galvanized steel pipes or rectangular pipes, and there are manual film rolls and insect-proof nets on both sides of the greenhouse.

The cost of the greenhouse is low, the overall skeleton structure is high in strength, and the land utilization rate is high.

Greenhouse is customized, can follow customers require.

Name:		Tunnel greenhouse for best hydroponic system
Description:	The body framework material:	hot-dip galvanized steel tube
	Film:	PE film , PO film,
	Insect net:	HDPE, UV block, transparent;
	Ventilation System:	Manual or electric window opening on both sides
Parameter:	Spen:	5m/6m/8m/9m/9.6m/10m, Customizable
	Section:	1~3m, Customizable
	Top Height	3~5m, Customizable

Project Picture

Technical Parameters:

Temperature Control	Available
Structure	Arched
Size	Customizable
Cost	Reasonable
Wind Resistance	Up To 80km/h
Greenhouse Film	150micron Clear Film
Wind Load	0.4KN/M2
Height	2.8-4.5m
Roof Height	3.5m Or Customized
Covering	150/200micron PE Film

Key Features:

Structure:
1. Made of galvanized steel hoops or PVC pipes bent into arches.
2. Covered with UV-resistant plastic film (usually 6–12 mil thickness).
3. No heating/cooling systems (passive design), though vents or roll-up sides can be added.

Uses:
1. Extends growing seasons (early spring/late fall).
2. Ideal for vegetables (tomatoes, leafy greens), berries, flowers, and nursery seedlings.
3. Protects against frost, wind, heavy rain, and pests.

Advantages:
1. Low cost (10x cheaper than glass greenhouses).
2. Easy assembly (no foundation required).
3. Portable (can be relocated if needed).
